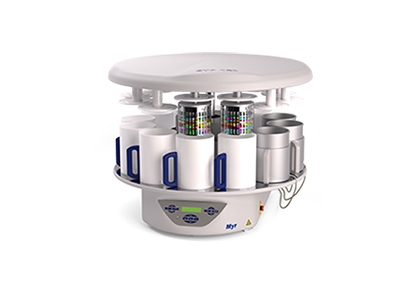

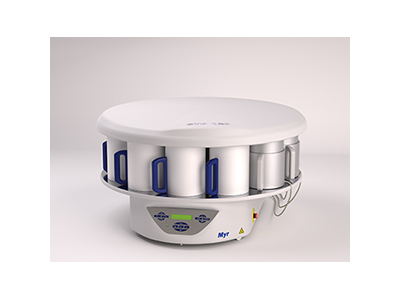

TISSUE PROCESSOR STP120

A worldwide unique technique. Tissue Processor STP 120 fulfills it in a patented and unique technique that combines several movements for the tissue to achieve perfect infiltration results
Maximum Volume: 120/ 240 cassettes
Rotational Agitation: 0, 60 or 70 rpm
The shaking movement makes the baskets start centrifuging at the end of this process

The instrument has capacity to store up to 10 different programs that can be freely set up by the user
Infiltration time per station from 1 minute to 99 hours 59 minutes
The centrifuging function is activated as soon as the infiltration time comes to an end. The basket rises above the reagent’s level but rests inside the vessel
The STP 120-2 and STP 120-3 versions incorporate a fume extraction system that - through a fan and an active charcoal filter - cleanse the vapors before being discharged into the air

Product information:

Item No	120-000
Model	STP120
Product Name	Tissue Processor STP120
Dimensions	852500-700670mm
Power requirements	100-240VAC/50- 60Hz
Weight	70Kg
Number of vessels	10 (9 if 3 paraffin baths are used)
Volume per vessel	1.8 L
Number of paraffin stations	2 (optionally 3)
Volume	1.8 L
Temperature setting range	50 - 70°C

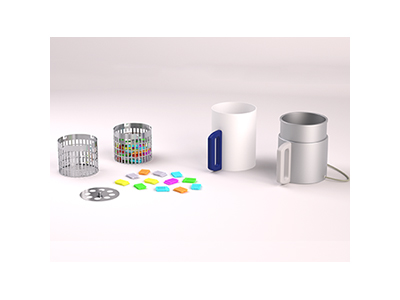

Number of cassette baskets	1 (optionally 2)
Basket capacity	120 cassettes (optionally 240)
Number of programs	10 (selectable)
Rotational agitation	selectable
Shaking	selectable
Centrifuging time	selectable

Catalogue
Wexis_STP120_EN
Wexis_Catalogue_2017-2018_EN
