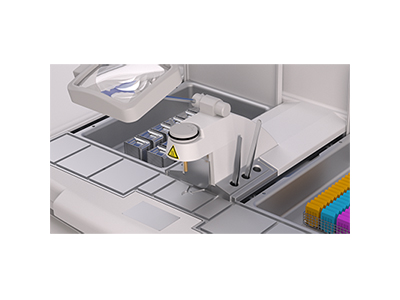

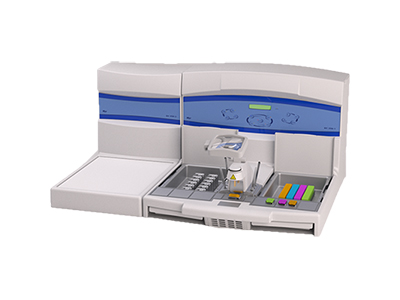

TISSUE EMBEDDING CENTER EC350

EC 350 is a modular paraffin embedding center featuring innovative design as well as easy operation. Different possibilities of setting up this instrument offer a simple and flexible adaptation to the working methods in the respective lab

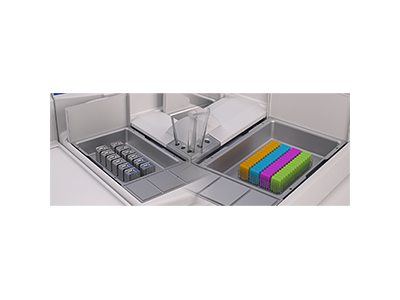

Easy operation by perfect ergonomy. The ergonomical arrangement of two large trays, which can be heated independently of each other, for the storage of cassettes and molds allows a flexible working method
Ergonomical working area for fast specimen processing
Saving energy by automatic timer operation
Non-tiring working by improved operating comfort
Spacious paraffin reservoir for continuous operation

Dispensing Console EC350-1

Console Dimensions : 650*595*432mm
Removable Trays Dimensions : 262*175*55mm
Weight : 27.8kg
Paraffin reservoir : 5L
Left/Right chamber : 1.7L
Normal Voltage : 100-120V / 220-240V
Networks frequency: 50Hz / 60Hz
Temperature settings: Available
Paraffin reservoir, left/right chamber, heated area
Forceps receptacle : 50/70°C
Electrically heated forceps : 60/75°C

Cryo Console EC350-2

Console Dimensions : 340* 620*405 mm
Cold Plate Dimensions : 375*307mm
Weight : 24.4kg
Capacity : Up to 60 cassettes
Normal Voltage : 110-120V / 220-240V
Networks frequency: 50Hz / 60Hz
Temperature settings : 0 / -12°C
Options : Electrically Heated Forceps : Red(1mm), Yellow (2mm), Blue(4mm)

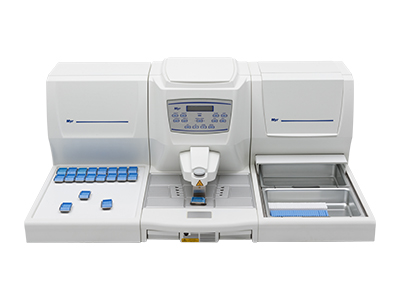

MODULAR TISSUE EMBEDDING CENTER EC500

Functional and versatile design for a user-friendly operation
All elements in the modular paraffin embedding center are designed to achieve maximum efficiency and operating comfort

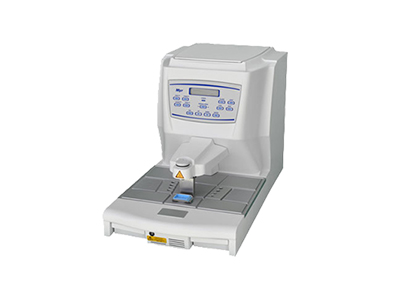

Dispensing Console EC500-2

White LED light illumination
8 heated holes for forceps wells
Two built in paraffin trimmer
Cooling spot integrated into the working surface
2 front drawers for surplus paraffin
Integrated connector for electrically heated tweezers
Large field magnifier (accessory)

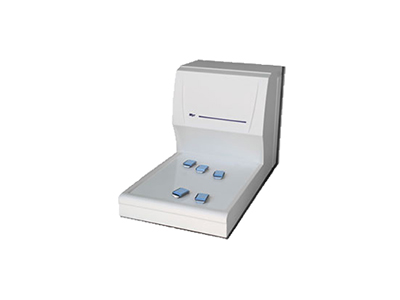

Cryo Console EC500-1

Large cooling surface for up to 60 cassettes/molds
Selectable temperature between 0 and -12º C
Steady temperature distribution over the entire surface
Allow placement on the right or left side of dispensing console
Stand-alone operation possible

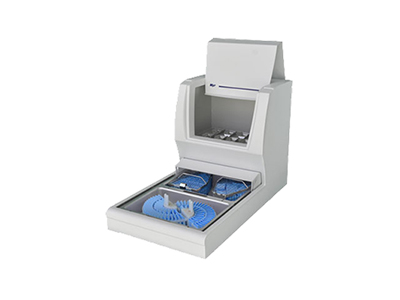

Thermal Console EC500-3

Accepts baskets from any common tissue processor
Cassette storage of huge capacity, featuring two removable trays with capacity for two baskets ( 200 cassettes) or 3 baskets ( 300 cassettes) without trays
High profile cover for cassette storage
Mold storage with capacity for more than 300 molds
Operation only possible if connected to embedding console
